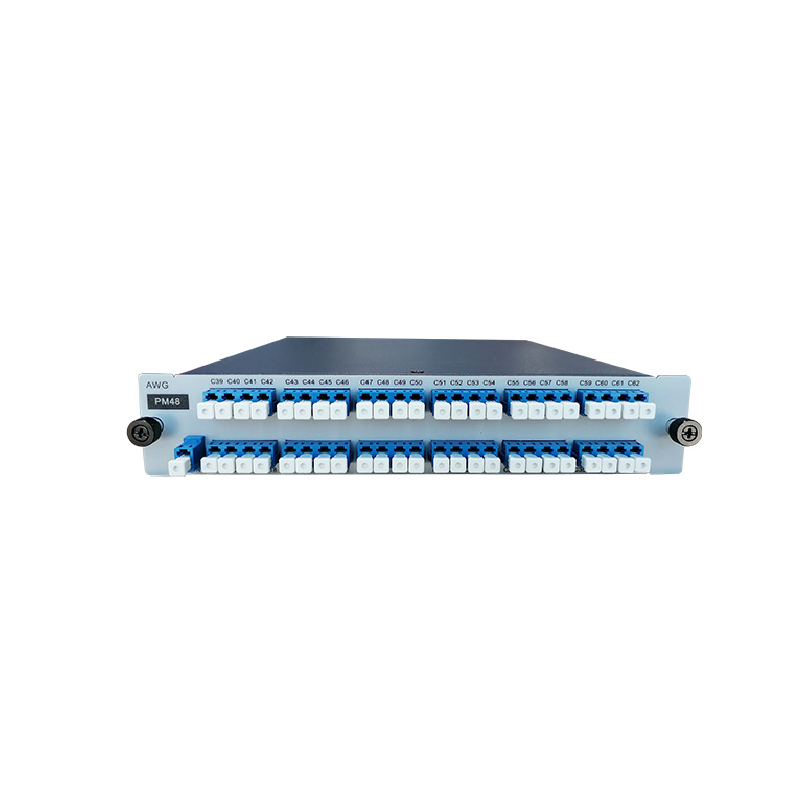

It features DWDM pluggable with 48-channel AWG high-performance passive wavelength management device for large capacity optical transmission system. This grating device is customizable based on arrayed waveguide grating technology, with full passive operation and a pluggable structure compatible with OPC1600 chassis. It has good optical indexes and a strong environment adaptability, which becomes one of the best options for operators to construct high density DWDM transmission networks.
This pluggable AWG card achieves full density of 48-channel dense wavelength integration, thereby maximizing the write and read capabilities of a single fiber transmission.
It allows network builders to increase capacity without new optical cables in existing systems:
• Supports 48 C-band DWDM channels with standard 100GHz channel spacing
• Matches OPC1600 passive chassis and occupies only 2 unit slots
• Equipped with standard LC ports for convenient optical connection
The high-density design greatly enhances the utilization of fiber resources to meet the capacity increasing requirements of core transmission networks.
Stable optical characteristics of the card allow the tight packing of wavelength systems while ensuring signal integrity.
It sustains good performance even in long-distance and high-capacity transmission links:
• Low insertion loss to reduce signal attenuation during transmission
• High channel isolation to effectively suppress inter-channel crosstalk
• High return loss and directivity to reduce signal reflection interference
This optical feature guarantees stable transmission quality and lowers the failure probability of long-distance communication links.
This AWG card is for use as a fully passive device and runs without any power supply, or a sensitive or complex configuration.
This significantly reduces day-to-day operational workload and long run operating cost of network users:
• Zero power consumption and no need for additional power supply
• No debugging or remote monitoring required in daily operation
• Plug-and-play structure for fast installation and replacement
The passive design lowers the failure points of equipment and provides a more economical solution for large-scale network deployment.

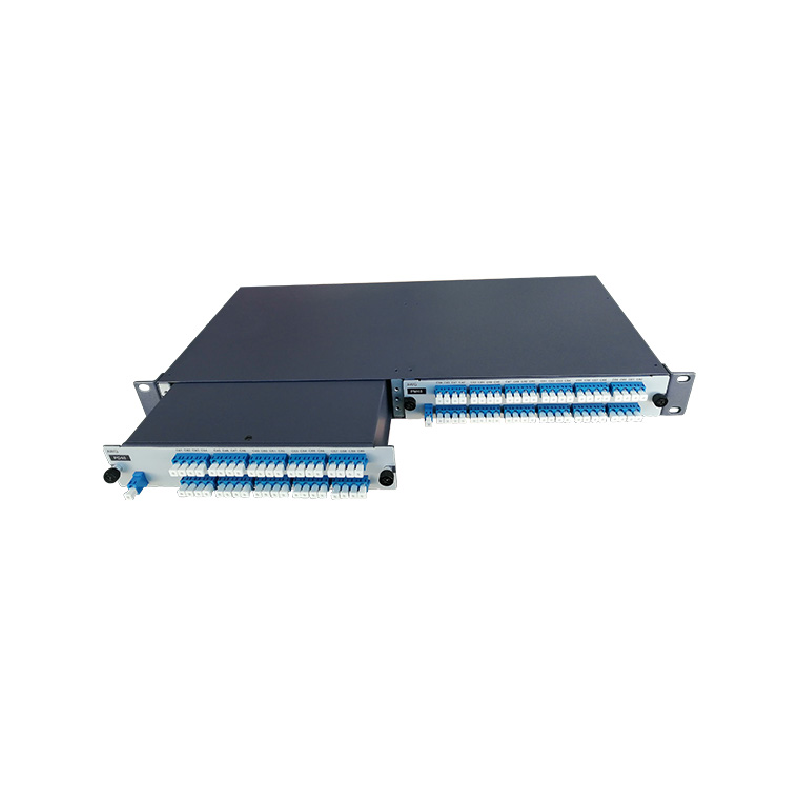

The card features a modular pluggable design with very high usage characteristics for standard chassis systems.
It helps flexible and repetitive use network to protect the early investment of its construction:
• Modular structure for easy installation, removal and reuse
• Supports 7×24 hours continuous stable operation in carrier networks

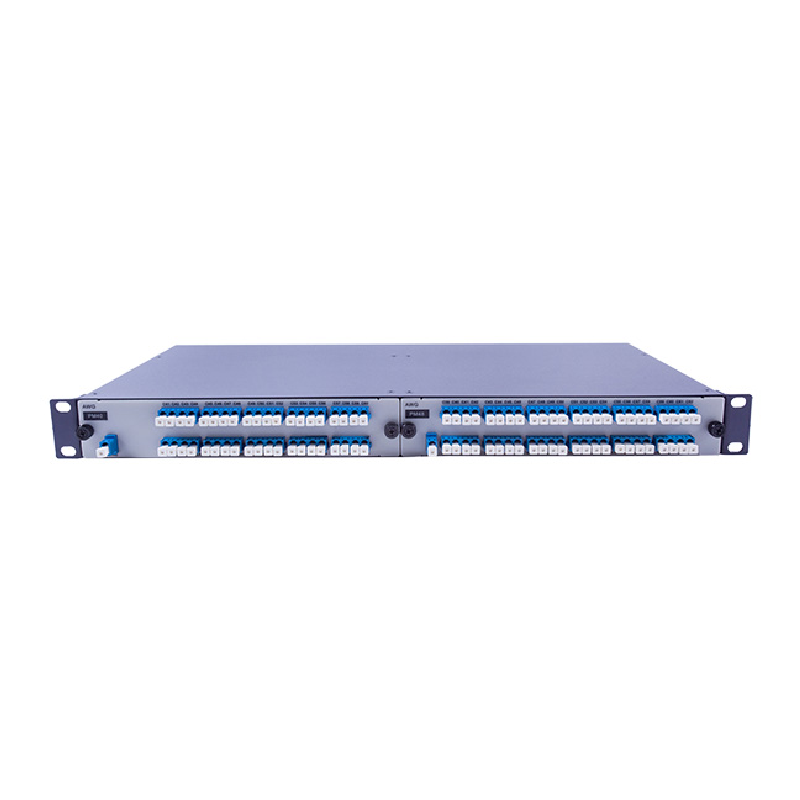

• Cooperates with OPC1600 chassis for unified rack management
This flexible architecture allows for incremental growth in terms of network capacity and prevents double investments in hardware.
It features an AWG card designed to accommodate demanding working environments and a temperature range between -40 ~ +85 °C.
Bay to Gateway communication:It can keep stable performance on indoor equipment room and outdoor station:
• Operating temperature range from -40℃ to 85℃ for harsh environments
• Suitable for outdoor nodes, remote stations and common equipment rooms
• Environment-friendly design with no energy consumption during work
With excellent environmental adaptability, it can cover more complex deployment scenes.
This high-density wavelength expansion is common with a 48-channel AWG pluggable card.
It offers dependable solutions on several major optical communication fields:
• Telecom operator long-haul and metro DWDM backbone networks
• 5G and new-type service bearing transmission networks
• Large-capacity data center interconnection DCI links
• Standardized modular passive DWDM integrated systems
It does so effectively to help the users make the better use of fiber, minimize construction costs and create stable high-speed communication network.
