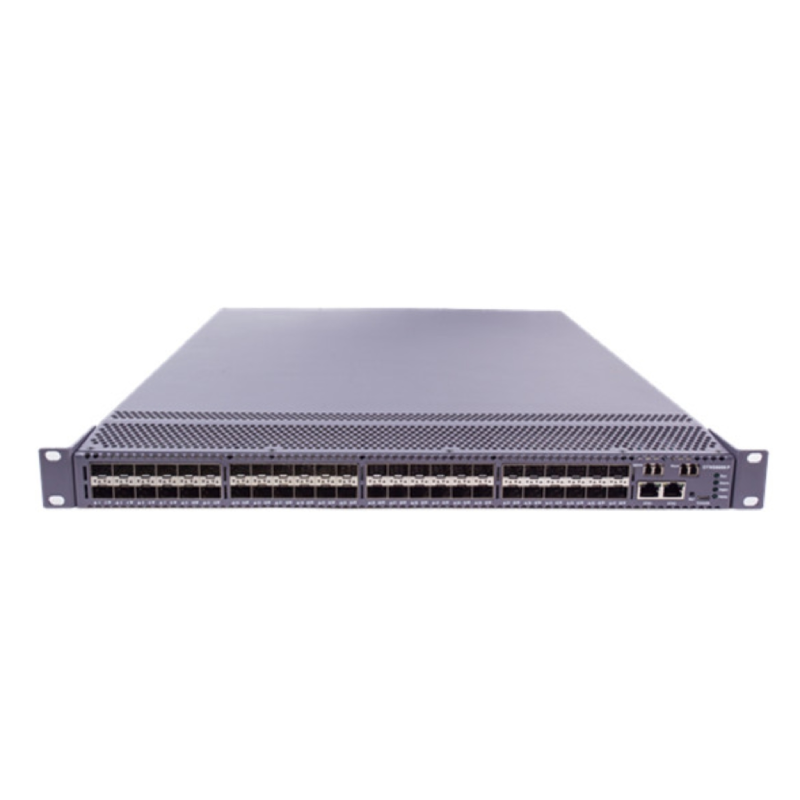

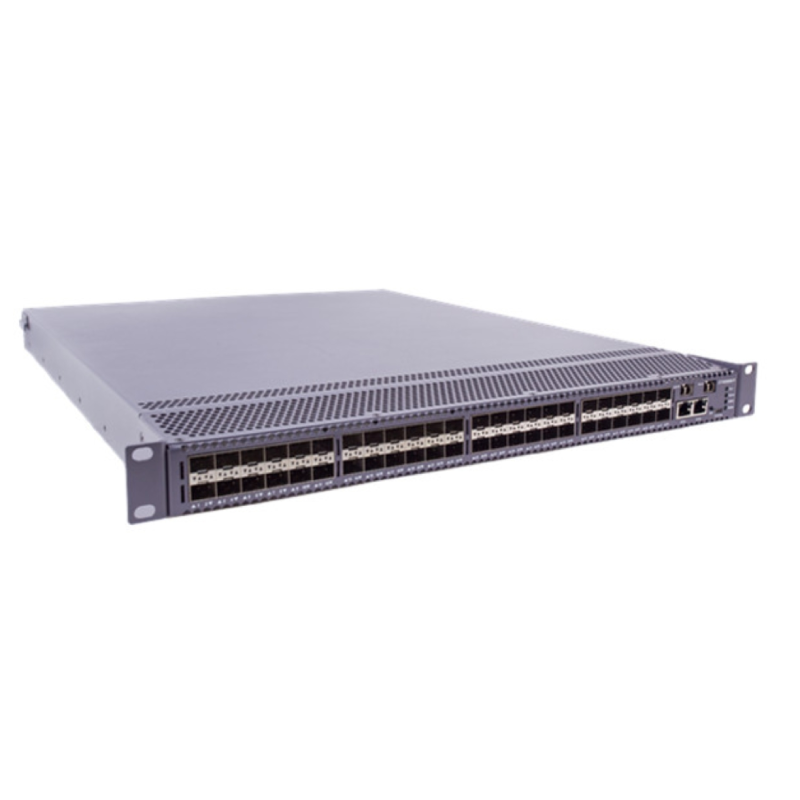

DCI Box 48x10G 480G System for Fiber Transmission

DCI Box 48×10G 480G System is an integrated DWDM transmission platform for high-capacity fiber communication networks. It can accommodate up to 48 channels at 10G for 480Gbps throughput in a single 1U rack-mounted chassis.

Its highly integrated architecture simplifies the deployment of optical transport while drastically reducing cabinet space. The integrated design saves rack space compared against traditional multi-device solutions by as much as 90%, and is therefore suited for tight-dimension data centers and telecom facilities.

It features flexible optical networking for data center interconnect (DCI), metro optical transport networks, and enterprise backbone fiber infrastructure as well as multiple service interfaces.

High-Density 10G Service Access

The 10G DWDM DCI system presents high-density service access, and flexible interface compatible.

Key service capabilities include:

• Maximum 48*10G channels

• Total system capacity up to 480Gbps

• Single-channel access rate up to 10Gbit/s

Supported services include:

• FE / GE / 10GE Ethernet

• STM-1 / STM-4 / STM-16 / STM-64

• OC-3 / OC-12 / OC-48 / OC-192

• FICON / ESCON

• CPRI 1 / 2 / 3 / 6 / 7

With this flexibility, the system is capable of handling legacy telecom services and Ethernet-based applications.

Integrated DWDM Transmission Platform

Specialized DWDM optical transport is integrated into a small device to simplify network deployment and reduce operational overhead.

Key optical transmission features include:

• Support for DWDM wavelength transmission

• Integrated optical multiplexing architecture

• Flexible service adaptation for 100M to 10G services

Optical Topology Oriented: A minimum functional hardware upgrade only needs to be deployed for networking, ensuring the optical topology is not modified, reducing scalability time.

Network Protection and Reliability

DCI DWDM system offers state-of-the-art protection mechanisms for stable optical provisioning.

Key reliability features include:

• 1+1 optical line protection

• Automatic optical path switching

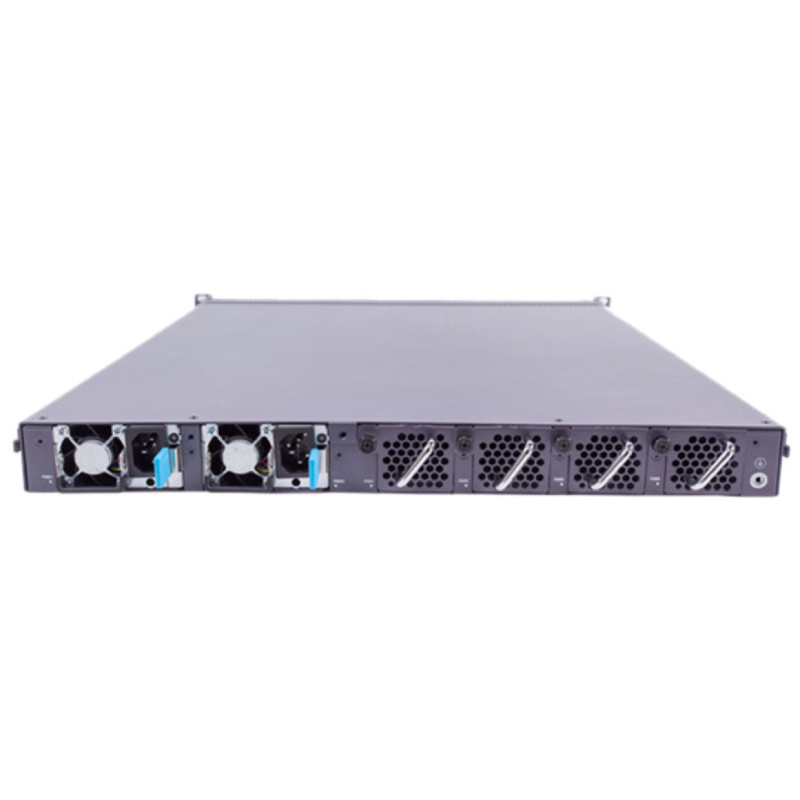

• Dual power supply configuration with 1+1 hot backup

• Load sharing power protection

These capabilities enhance the availability of networks and reduce service disruption in optical transmission networks.

Network Management and Monitoring

It come with integration monitoring and management features to simplify operation of the network.

Management features include:

• In-band monitoring channels

• SNMP-based network management

• Real-time monitoring of optical path connectivity

• Optical power and system status monitoring

This allows operators to track the real-time performance and stability of optical transmission networks.

Hardware and System Specifications

It is specifically designed to be deployed in standard telecom cabinets as a 10G integrated DWDM system.

Key specifications include:

• Equipment size: 1U rack unit (44 mm*442 mm*560 mm)

• Installation: Standard 19-inch rack cabinet

• Cooling: Fan cooling

• Power supply: AC 90-260V or DC -36V to -72V

• Power consumption: <400W (maximum)

Environmental specifications:

• Operating temperature: -10℃ to 60℃

• Operating humidity: 5%-95% (non-condensing)

• Storage temperature: -40℃ to 85℃

System reliability:

• MTBF > 100,000 hours

Typical Applications

The DCI Box 48×10G DWDM system is widely used in various high-capacity fiber communication scenarios, including:

• Data Center Interconnect (DCI)

• Metro optical transport networks

• Enterprise private optical networks

• Telecommunication backbone infrastructure

• Campus and regional fiber networks
