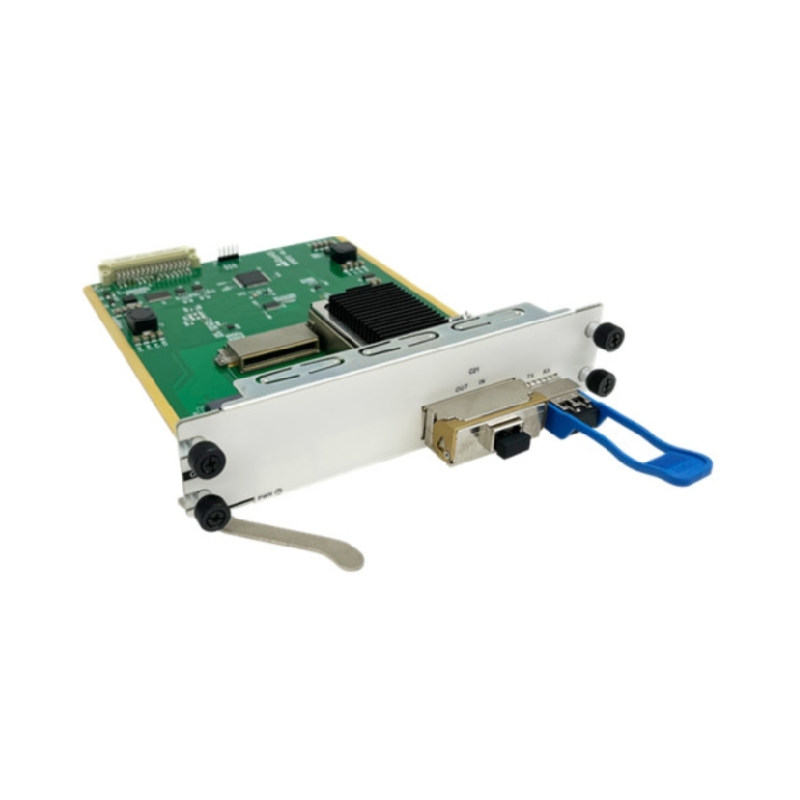

100G DWDM Transponder (CFP2) – enabling reliable wavelength conversion and long-distance optical transmission in DWDM fiber networks. The card transforms 100G Ethernet customer traffic into wavelength division multiplexing (WDM) optical wavelengths to easily plug into metro and long-haul WDM systems.
The transponder also achieves high-density DWDM system stability performance by employing CFP2-DCO coherent optical technology with PDM-QPSK modulation. It supports tunable wavelengths across the C-band spectrum for added flexibility when deploying high-speed optical links.
It is commonly used for long-haul optical backbone networks, metro DWDM transport systems and data center interconnect (DCI) infrastructures.

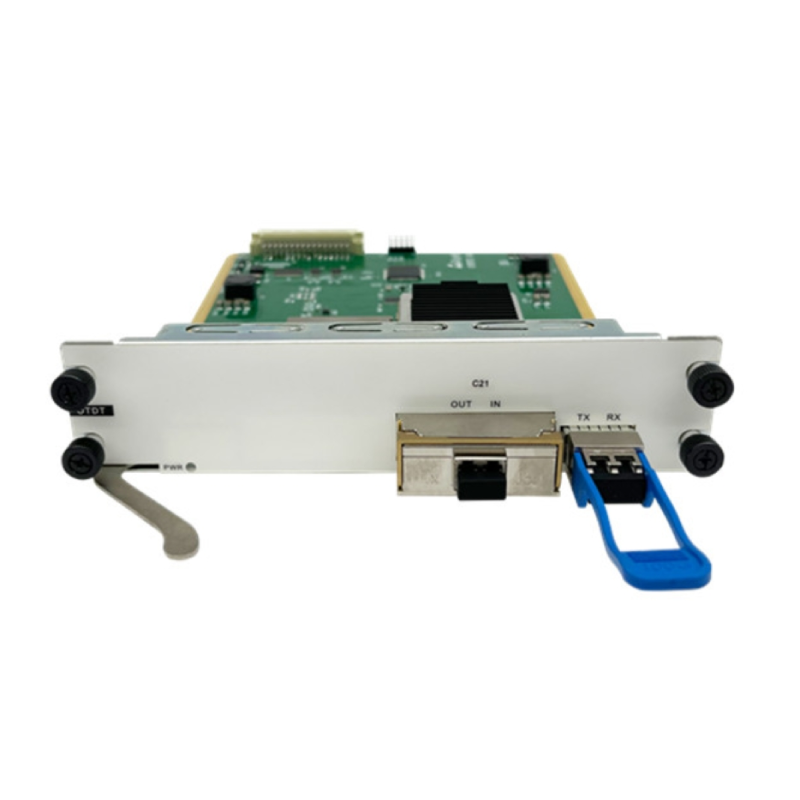

100G CFP2 DWDM transponder module supports service conversion between client-side Ethernet and DWDM optical wavelengths with dedicated interfaces.
Client Side
• 1*QSFP28 pluggable optical interface
• Supports 100GE Ethernet services
Line Side
• 1*CFP2-DCO pluggable coherent optical interface
• Uses PDM-QPSK coherent modulation
So, its architecture translates a 100G Ethernet service into a DWDM optical channel to perform efficient high-speed transmission overlaying underlying Optical Transport Network.
The transponder features standard C-band DWDM transmission, which allows for stdwavelength allocation of dense optical networks.
Key DWDM capabilities include:
• C-band DWDM wavelength support
• 50GHz channel spacing
• Up to 96 tunable DWDM wavelengths
Those features enable the device to seamlessly integrate into existing DWDM optical infrastructures and to provide high-capacity wavelength multiplexing.
It provides support for the most common service formats supported in carrier-grade optical transport systems.
Supported service types include:
• 100GE Ethernet services
• 100GE FEC
• OTU4 transport
The equipment also supports 100G wave relay mode, and is able to regenerate signals to achieve optical transmission distance.
Using Soft Decision Forward Error Correction (SD-FEC) technology for enhanced long-distance transmission reliability, the 100G DWDM transponder provides high-quality service while seamlessly interoperating with mainstream equipment on the market.
Benefits of SD-FEC include:
• Improved tolerance to optical signal impairments
• Reduced bit error rates in long-distance DWDM transmission
• Enhanced overall transmission stability
This makes the transponder appeal for high-performance optical transport systems.
As the comprehensive monitoring and management function module of optical network operation.
Monitoring features include:
• Real-time port status monitoring
• Optical transmit power monitoring
• Optical receive power monitoring
• Optical module temperature monitoring
Device supports port loopback functions supporting the diagnostic and maintenance of optical transmission link.

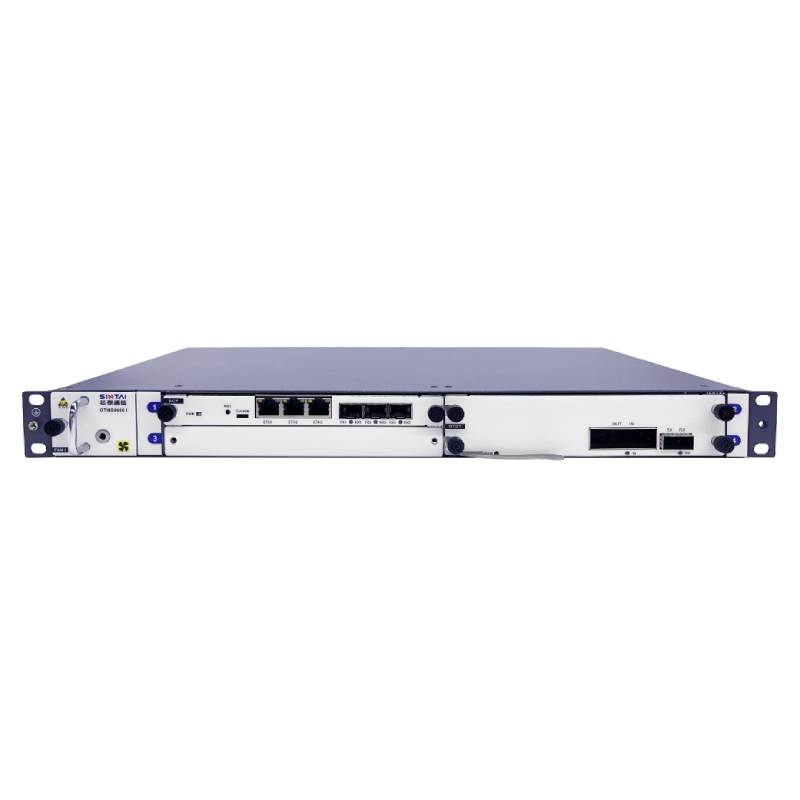

This article is about an Optical Transport Platform that handles the 100G CFP2 DWDM Transponder module.
System specifications include:
• Compatible with OTNS8600 full series chassis
• Occupies 2 service slots
• Maximum power consumption: 30W (including optical module)
• MTBF > 100,000 hours
This design delivers stability for long-term operation in carrier-grade optical transport systems.
The 100G DWDM transponder is widely used in high-capacity optical communication infrastructures, including:
• Long-distance DWDM backbone transmission
• Metro optical transport networks
• Data Center Interconnect (DCI)
• Telecommunication carrier networks
• Enterprise optical backbone infrastructures
The device efficiently deploys fiber-optic transport networks by transforming Ethernet services into dense wavelengths of optical-multiplexed wavelength division (DWDM) signals.
