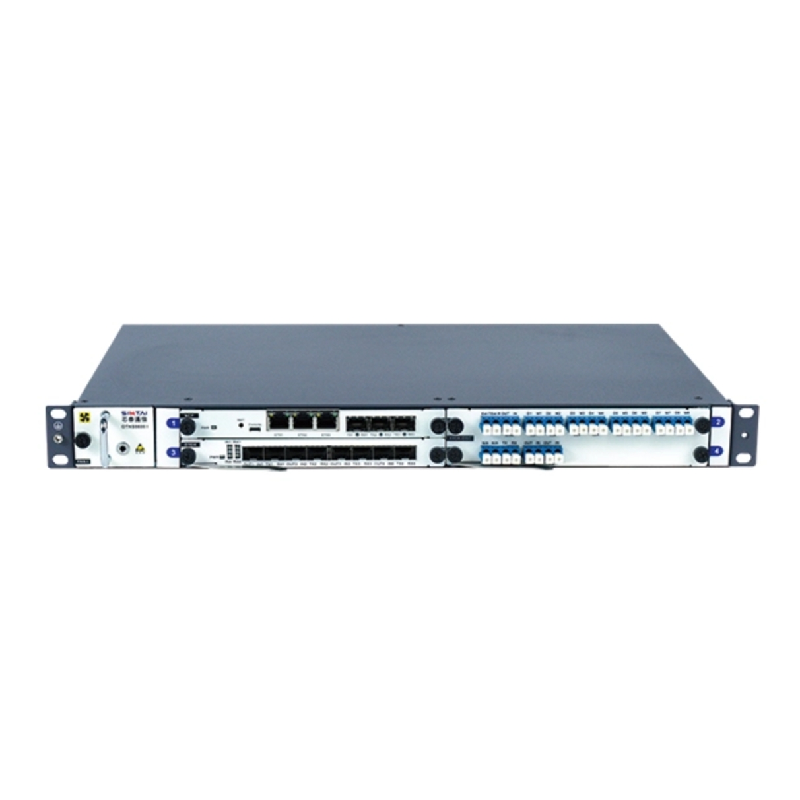

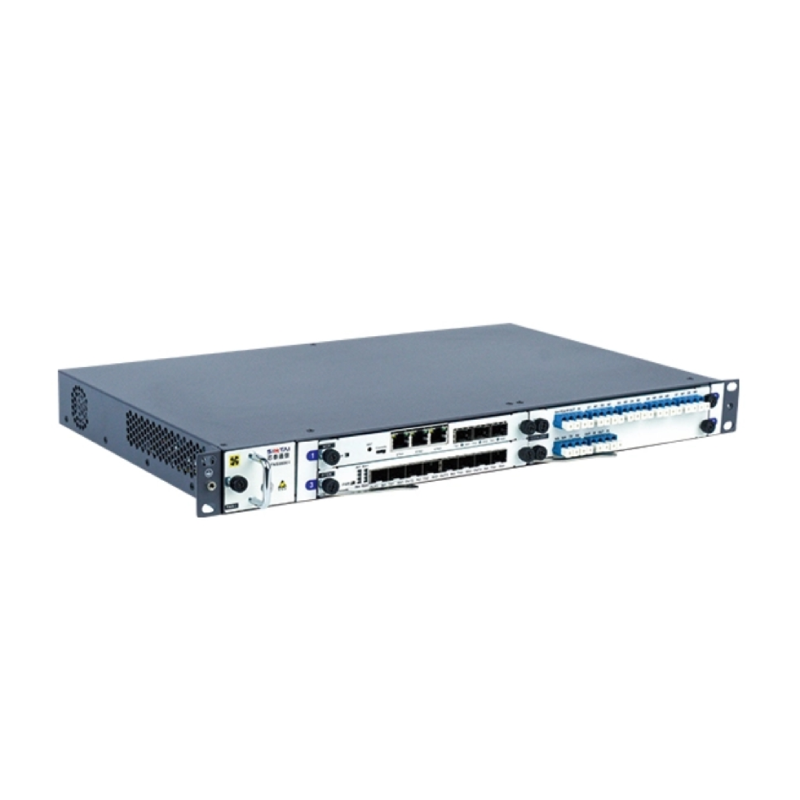

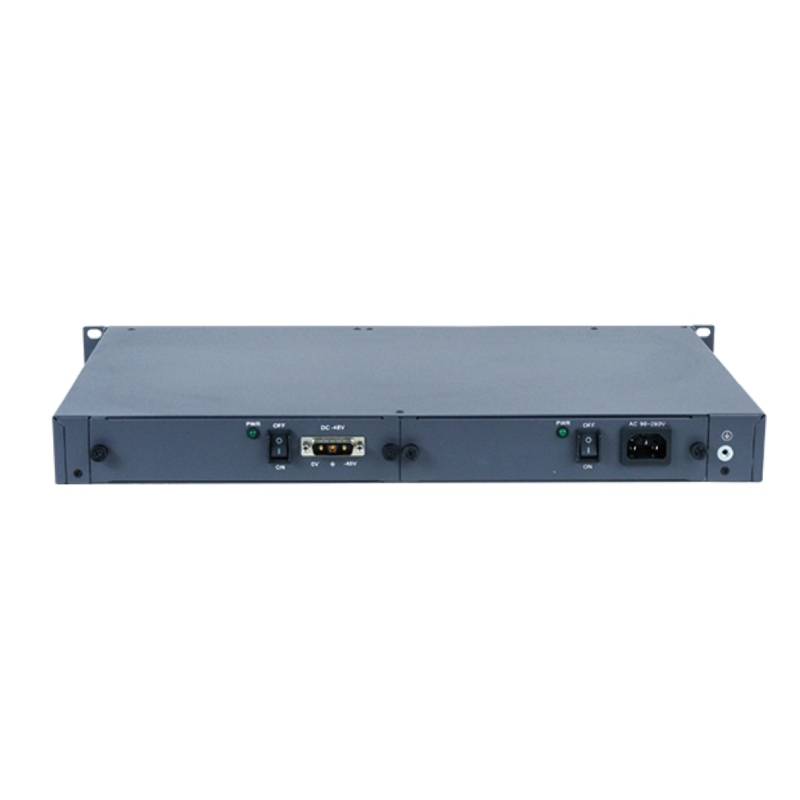

1U DWDM Mux Demux Chassis for Fiber Optical Network

Innovative 1U DWDM Mux Demux Chassis Design for Scalable Fiber Optical Networks. As a result, with the combination of multiplexing and demultiplexing functions in an integrated rack-mounted chassis, it maximizes fiber resource utilization while realizing high-speed optical transmission.

The chassis features a standard 19-inch 1U rack-mount design that enables operators and system integrators to deploy high-density DWDM infrastructure in cramped cabinet space. It is commonly used for data center interconnect (DCI), metro optical networks, enterprise optical transport systems, and telecom backbone networks.

Compact 1U Design for High-Density Deployment

To optimise the use of space in optical network equipment rooms and data centres, a compact structural design is used for the chassis.

Its unique modular architecture allows for all plug-in DWDM Mux Demux modules and supports flexible channel configurations 4CH, 8CH, 16CH, 40CH and up to a 96-channel DWDM system. This enables network operators to scale transmission capacity based on traffic without ripping and replacing entire systems.

Key structural advantages include:

• Standard 19-inch 1U rack-mount chassis

• Modular design supporting multiple DWDM Mux Demux modules

• Front-panel access for easy installation and maintenance

• Organized internal fiber routing for stable optical connections

• Optimized chassis layout for high-density optical deployments

High Compatibility with DWDM Optical Networks

The DWDM Mux Demux chassis is engineered to integrate seamlessly with various optical transmission systems. It supports standard ITU-T DWDM wavelength grids (100GHz / 50GHz) and can be deployed alongside common optical transport equipment.

The system is compatible with:

• 10G / 25G / 40G / 100G / 400G optical transmission systems

• SFP+, QSFP+, and QSFP28 optical transceivers

• EDFA optical amplifiers

• Optical Line Protection (OLP) systems

• OTN and DWDM transport platforms

This compatibility simplifies integration into existing fiber networks and supports future capacity expansion.

Low Insertion Loss and Stable Optical Performance

Reliable optical performance is critical in DWDM transmission networks. The chassis is designed to support high-quality Mux Demux modules that provide excellent signal integrity and transmission stability.

Key optical performance advantages include:

• Low insertion loss for efficient wavelength transmission

• High channel isolation to reduce signal interference

• Stable wavelength performance across temperature variations

• Reliable operation for continuous network deployment

Each unit undergoes strict production inspection and optical testing to ensure consistent performance in real network environments.

Technical Specifications

• Form Factor: 1U 19-inch Rack Mount

• Supported Channels: 4 / 8 / 16 / 40 / up to 96 DWDM channels

• Wavelength Grid: ITU-T 100GHz / 50GHz

• Connector Type: LC/UPC or LC/APC

• Operating Temperature: -5°C to +50°C

• Installation: Standard rack-mounted deployment

Typical Applications

The 1U DWDM Mux Demux Chassis is suitable for a wide range of optical transmission scenarios:

• Data Center Interconnect (DCI)

• Metro optical transport networks

• Long-distance DWDM backbone transmission

• Enterprise private optical networks

• Telecommunication carrier infrastructure

Its compact structure and scalable channel capacity make it ideal for high-density DWDM deployments.
