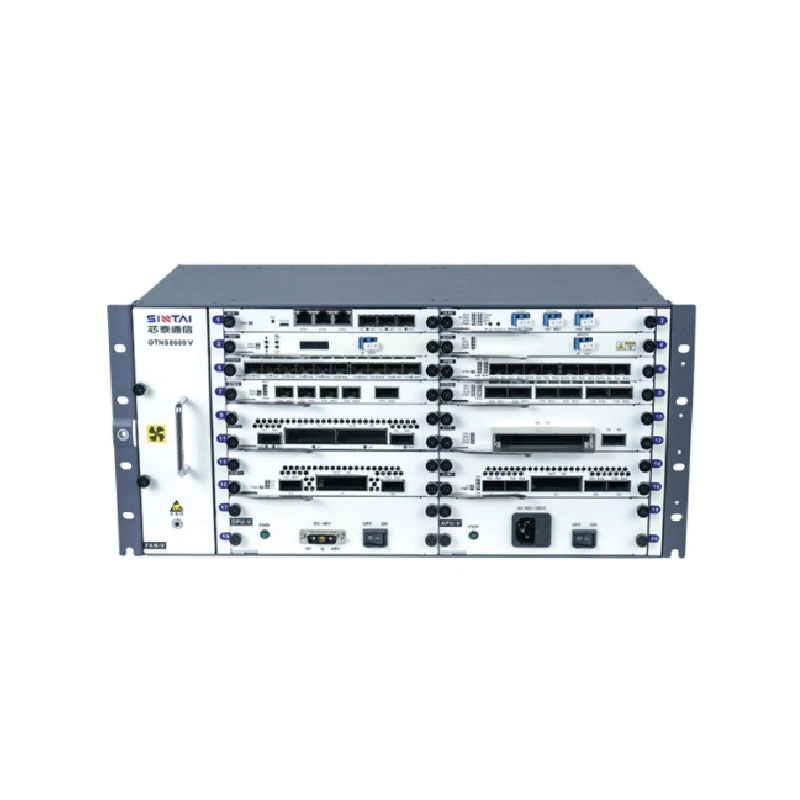

5U HIGH CAPACITY DWDM MUX DEMUX CHASSIS high density, large capacity Wavelength Division Multiplexers (DWDM) for multiplexing channels on a single fiber optic strand. The chassis is a dedicated high-density rack-mounted platform that deploys multiple DWDM Mux Demux modules for fiber utilization and transmission capacity.
In addition, the standard 19-inch 5U rack-mount chassis design of this system enables far more modules than smaller chassis solutions. Which is well-suited for metro optical transport networks, data center interconnect (DCI), enterprise backbone network and telecom carrier infrastructure with high-density DWDM deployment.
The 5U DWDM chassis is designed for large-capacity optical network environments where a number of DWDM modules need to be integrated in one system.
With the modular structure, this DWDM Mux Demux allows flexible deployment of the channel by seamlessly supporting 4CH, 8CH,16CH,40CH and even up to 96-channel DWDM systems. This scalable architecture enables network operators to scale transmission capacity to accommodate ever-growing bandwidth demand.
Key structural features include:
• Standard 19-inch 5U rack-mount chassis
• Large internal capacity for multiple DWDM modules
• Modular plug-in architecture for flexible configuration
• Front-panel access for easy installation and maintenance
• Optimized fiber routing for stable optical connections
The DWDM Mux Demux chassis plays a significant part in enhancing fiber utilization, enabling multiple wavelengths to be sent over the same pair of fibers.
With DWDM technology, network operators can increase the transmission capacity without needing to lay extra kilometers of fiber. It is critically valuable in metro and backbone networks where fiber resources are scarce but bandwidth demand is on the rise.
The 5U platform is well suited for high-density network deployments and centralized optical equipment rooms.
The 5U DWDM Mux Demux chassis is compliant with standard ITU-T DWDM wavelength grids (100GHz / 50GHz) and it’s interoperable with most of the optical networking equipment on the market.
Compatible systems include:
• 10G / 25G / 40G / 100G / 400G optical transmission systems
• SFP+, QSFP+, and QSFP28 optical transceivers
• EDFA optical amplifiers
• Optical Line Protection (OLP) systems
• OTN and DWDM transport platforms
Such adaptability enables the chassis to be utilized in both emerging optical networks as well as current transmission systems.
The need for high reliability in optical performance is especially important for the high-capacity DWDM transmission networks. The chassis is of high quality, supporting Mux Demux modules with stable signal integrity and wavelength accuracy.
Performance advantages include:
• Low insertion loss for efficient wavelength transmission
• High channel isolation to minimize signal interference
• Stable optical performance across temperature variations
• Reliable long-term operation for carrier-grade networks
All chassis are carefully quality inspected and optically tested before leaving our facilities to ensure consistent performance in real life network deployments.
• Form Factor: 5U 19-inch Rack Mount
• Supported Channels: 4 / 8 / 16 / 40 / up to 96 DWDM channels
• Wavelength Grid: ITU-T 100GHz / 50GHz
• Connector Type: LC/UPC or LC/APC
• Operating Temperature: -5°C to +50°C
• Installation: Standard rack-mounted deployment
The 5U High Capacity DWDM Mux Demux Chassis is suitable for various high-capacity optical transmission scenarios:
• Data Center Interconnect (DCI)
• Metro optical transport networks
• Long-distance DWDM backbone transmission
• Enterprise fiber infrastructure
• Telecommunication carrier backbone networks
It features a high-density rack architecture that enables operators to efficiently deploy large DWDM systems within centralized optical equipment environments.
